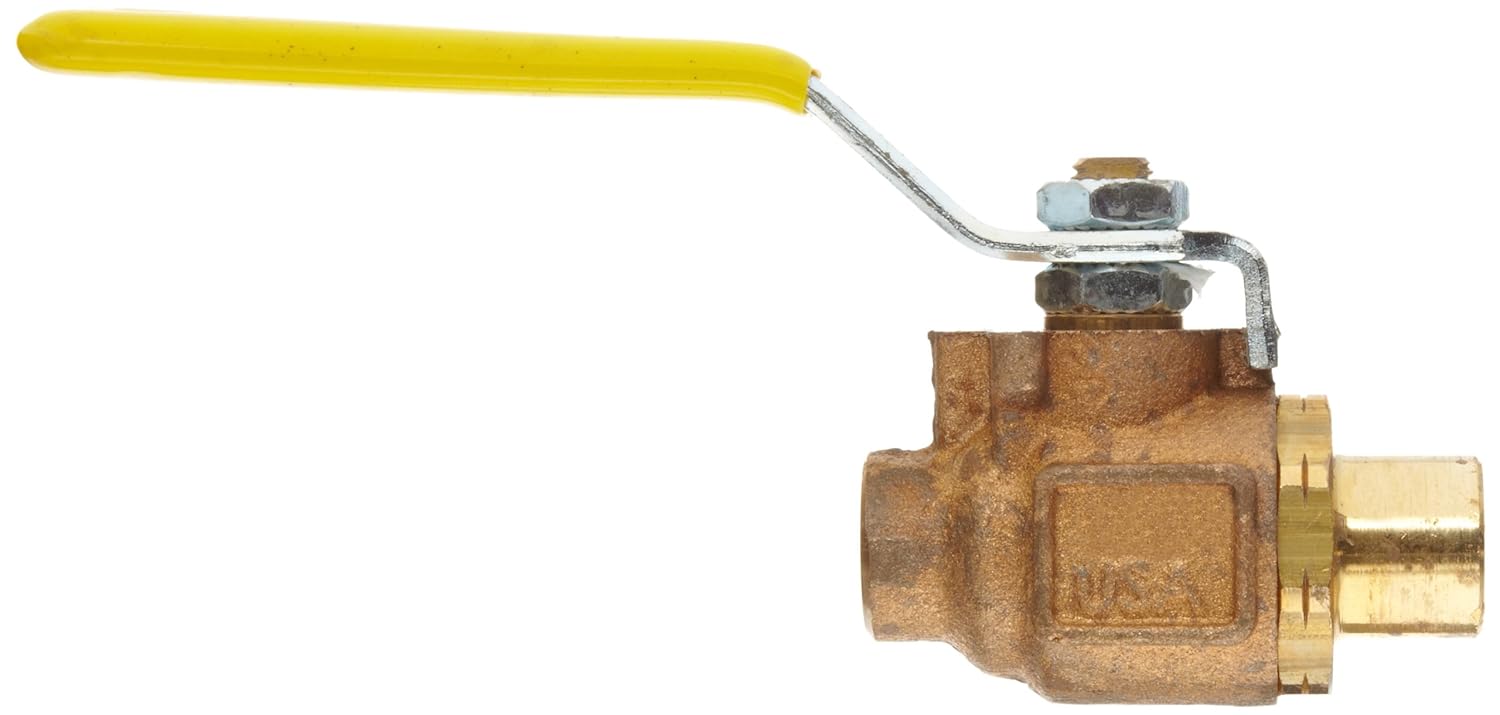

Apollo 77CLF-200 Series Bronze Ball Valve, Potable Water Service, Two Piece, Inline, Lever, 1/2" Solder End

The Apollo 77CLF-200 series bronze two-piece inline ball valve has a lever handle and solder end connections on both ends. This valve is made of bronze for higher strength and corrosion resistance than brass, and it has a zinc-plated steel lever handle with a vinyl sleeve for manual on/off control. The valve materials meet federal and state lead level requirements for use with potable water systems. The valve is full port for reduced friction; its inner diameter is the same as the inner diameter of the pipe it connects to for maximum operating efficiency. Multifill polytetrafluoroethylene (MPTFE) seats and seals reduce the risk of leakage, and the valve has solder end connections for semi-permanent yet reversible connection to tubing. The maximum pressure ratings are 600 pounds per square inch (gauge) (psig) cold working pressure (CWP) and 150 psig steam working pressure (SWP), and the temperature range is -20 to 500 degrees Fahrenheit. This ball valve is for use in water lines, processing plants, and agricultural applications and meets standards CA AB1953, VT Act 193, MD HB372, LA HB471, Federal Public Law 111-380, ANSI/NSF 61, and MSS SP-110 for quality assurance.Ball valves use a spherical disc to control the flow between pipes, tubes, or hoses. Flow is allowed when the hole that pierces the ball-shaped disc is in line with the inlet and outlet of the valve. Flow is blocked when the ball is horizontally swiveled 90 degrees, so that the hole of the ball is perpendicular to the opening of the valve. Ball valves can be referred to as full port or reduced port (also known as regular or standard port) depending on the inner diameter of the valve. A ball valve is full port if the hole of the ball is the same size as the inner diameter of the connecting pipeline (resulting in lower friction) and is reduced port if the hole of the valve is one pipe size smaller than the pipe, resulting in less flow through the valve than through the shaft of the pipe. Ball valves may have a handle or lever that aligns with the ball’s position (open or closed) for manual operation. They are primarily used in air, gas, liquid, and steam applications.Apollo manufactures ball, mixing, and relief valves, actuators, water gauges, marine fittings, heating and plumbing products, and backflow prevention devices. The company, founded in 1928 and headquartered in Matthews, NC, meets International Organization for Standardization ISO/IEC 17025:2005 and makes products that meet ISO and American National Standards Institute (ANSI) standards.

• Made of bronze for higher strength and corrosion resistance than brass
• Zinc-plated steel lever handle with vinyl sleeve for manual on/off control
• Lead-free materials for potable water service
• Stainless steel 316 ball and stem for resistance to corrosion
• Solder end connections on both ends for a semi-permanent connection to tubing
