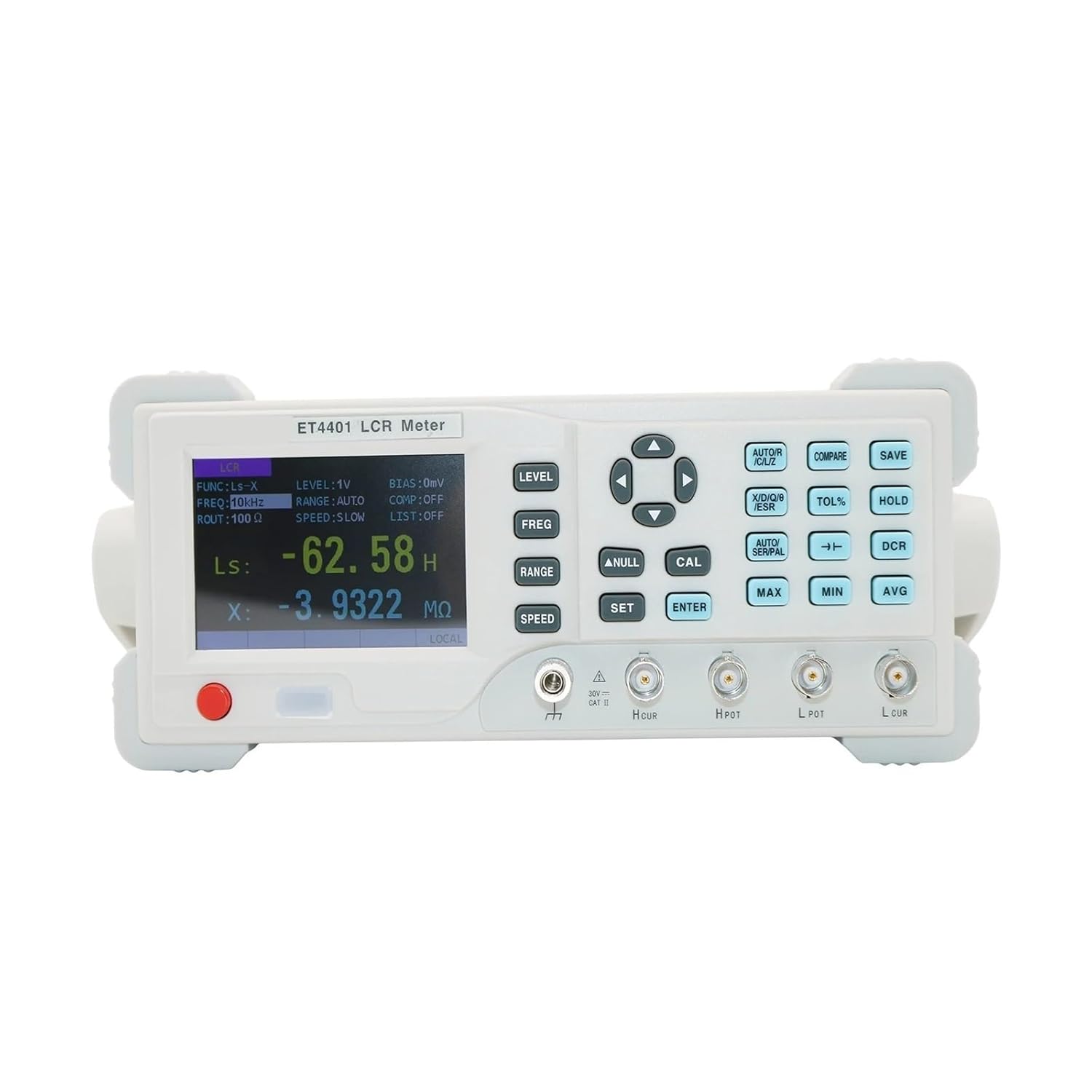

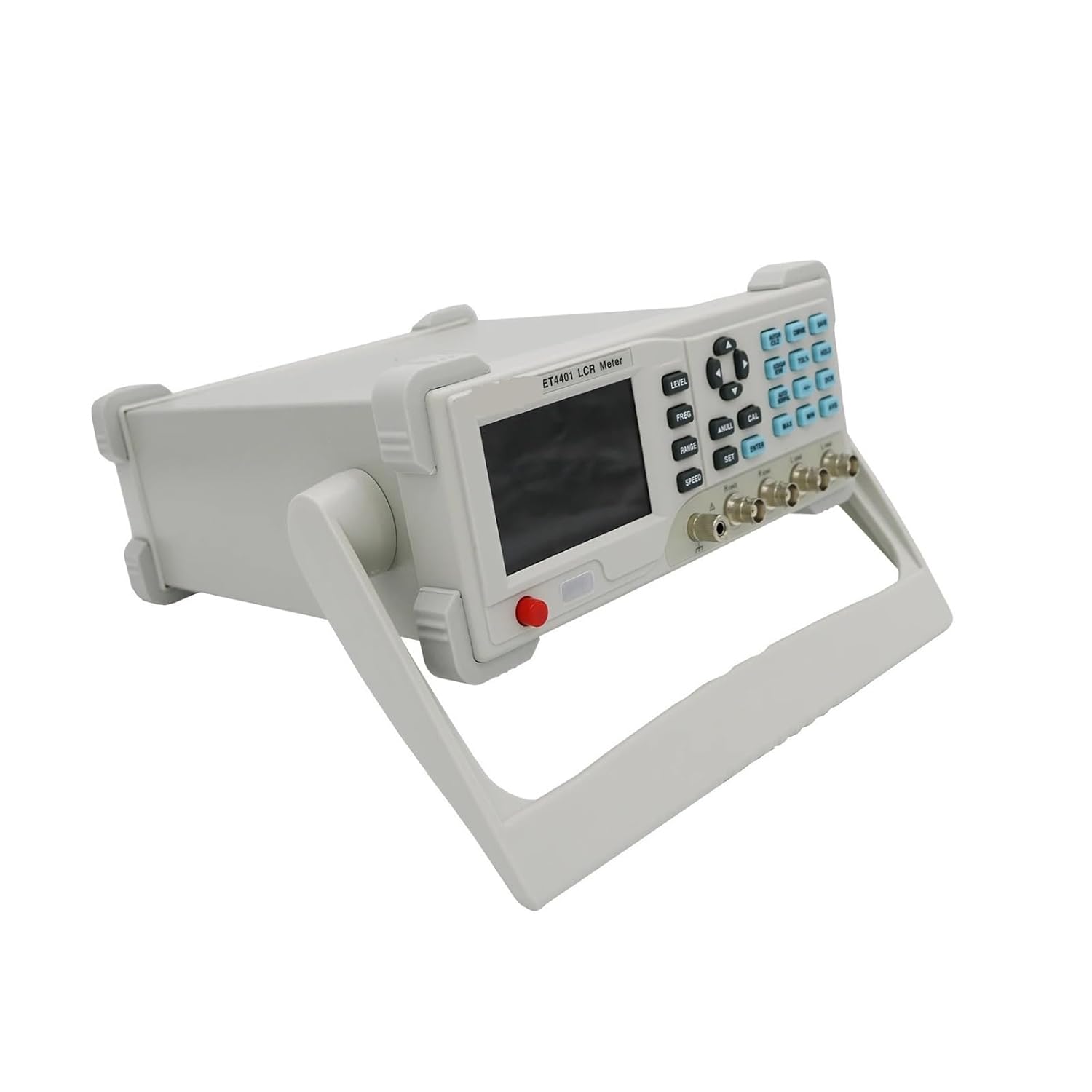

Capacitance Meter, 10Hz-100KHz Desktop Digital LCR Meter Capacitance Resistance Impedance Capacitance Inductance Measure Instrument(ET4401)

Descriptions:A Digital LCR Bridge LCR meter is an electronic instrument used to measure the inductance (L), capacitance (C), and resistance (R) of components with high precision. Its primary functions include characterizing passive components, verifying specifications, and troubleshooting circuit issues. The device provides precise measurements at various frequencies, helping engineers and technicians ensure the performance and reliability of electronic circuits.Product features:Measuring frequency up to 100 KHZ, Test level 10 - 2000 mv, Support dc resistance (DCR), electrolytic capacitor measurementThe internal bias voltage output 0 mv - 1500 mv3.5 inch TFT display, five showsData record function (maximum, minimum, average)Basic measurement accuracy of 0.1%Manual and automatic rangeWith open circuit and short circuit calibration functionComparator separation (5), alarm function

• Precision Measurement Tools: Offers high accuracy in measuring L, C, and R
• Frequency Flexibility: Allows measurements at various frequencies to assess component performance
• Digital Readout: Equipped with a digital display for easy viewing of measurements
• Smart Range Selection: Features automatic range adjustment for user convenience
• Data Management Features: Includes options for data storage and retrieval of measurement results
